Table of Contents

1. Acknowledgements
2. Setting Up
3. Design
   • Architecture
   • UI Component
   • Logic Component
   • Model Component
   • Storage Component
   • Common classes
4. Implementation
   • Adding orders feature
   • Mark/ Unmark orders feature
   • Finding orders and persons through attributes
   • Edit Order Feature
   • Listing all orders
   • Find Incomplete Orders Before A Date Feature
   • Delete Orders
   • Dynamic Toggling Between Application’s Data
5. Documentation, logging, testing, configuration, dev-ops
6. Appendix: Requirements
   • Product Scope
   • User Stories
   • Use Cases
   • Non-Functional Requirements
   • Glossary

---

Acknowledgements

• Geralddtan - Reused Leap Year Checker (DeliveryDateTime#isLeapYear) from https://www.geeksforgeeks.org/java-program-to-find-if-a-given-year-is-a-leap-year/
• Punnyhuimin - Reused natural date checker formula (DateChecker#naturalDateCheck()) from https://coderanch. com/t/385117/java/date-Monday
• Punnyhuimin - Reused scroll bar CSS https://stackoverflow.com/questions/48048943/javafx-8-scroll-bar-css

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

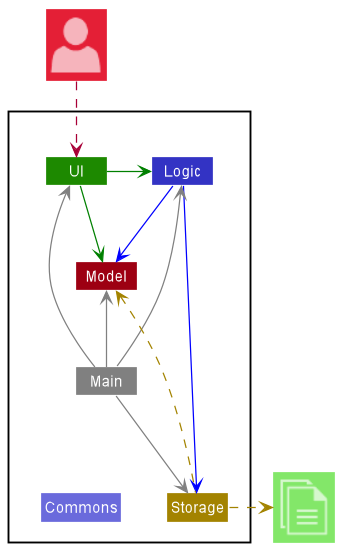

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

• At app launch: Initializes the components in the correct sequence, and connects them up with each other.
• At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

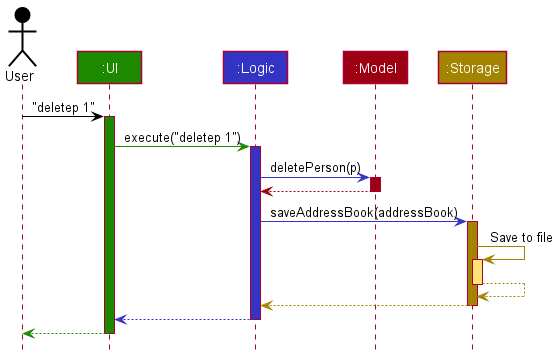

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command deletep 1.

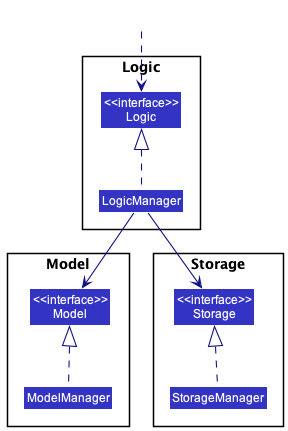

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

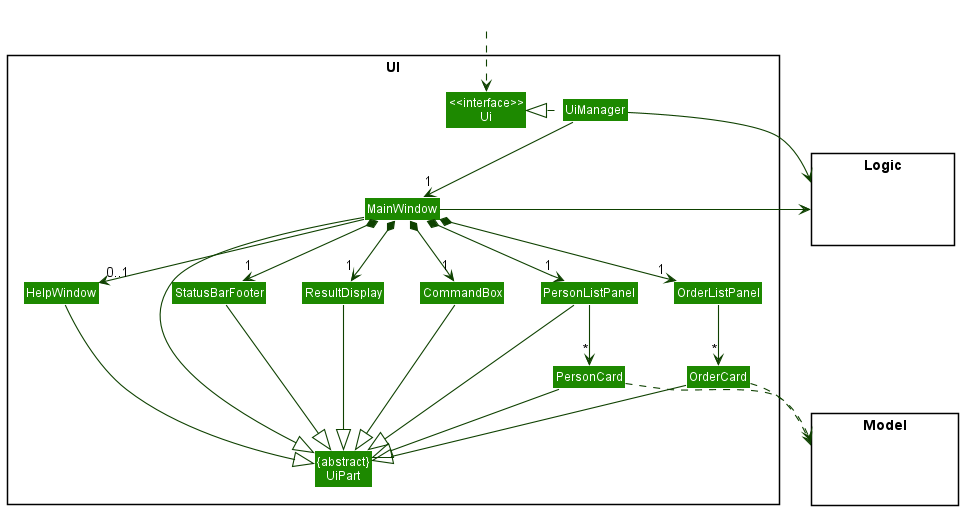

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel,OrderListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person and Order objects residing in the Model.

Logic component

API : Logic.java

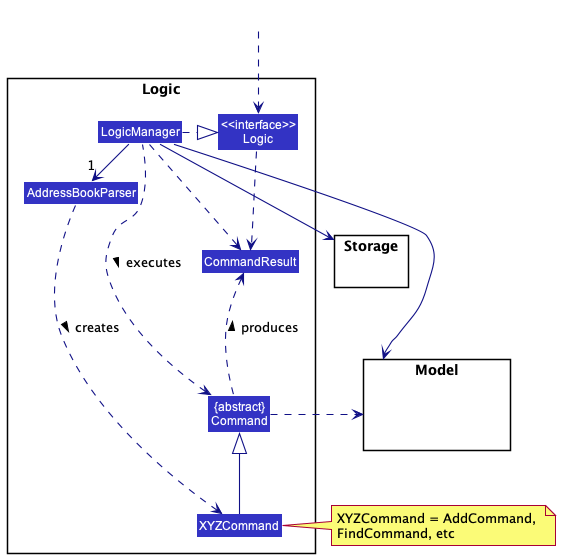

Here’s a (partial) class diagram of the Logic component:

How the Logic component works:

1. When Logic is called upon to execute a command, it uses the AddressBookParser class to parse the user command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddPersonCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to add a person).
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

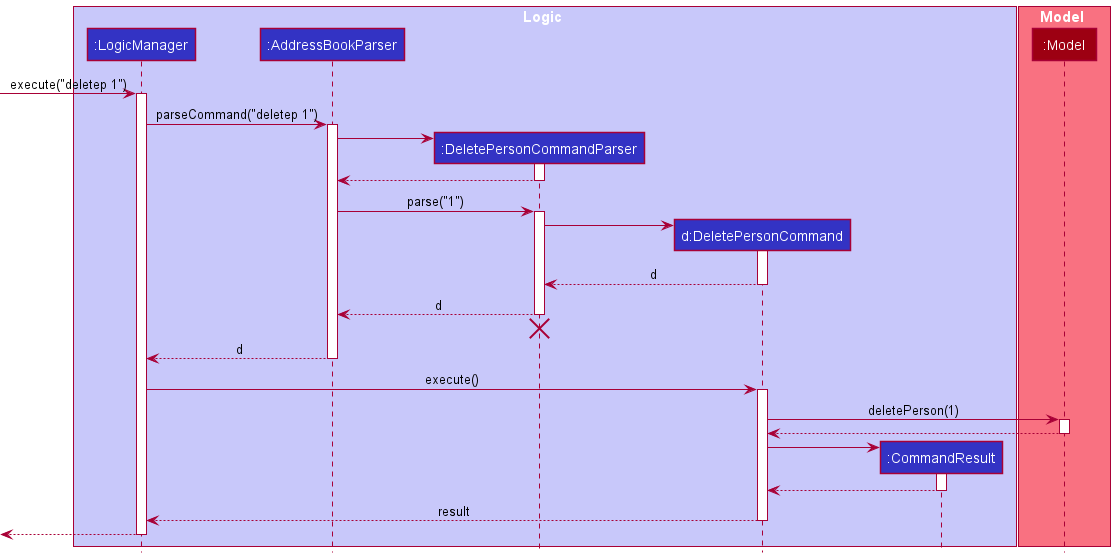

The Sequence Diagram below illustrates the interactions within the Logic component for the execute("delete 1") API call.

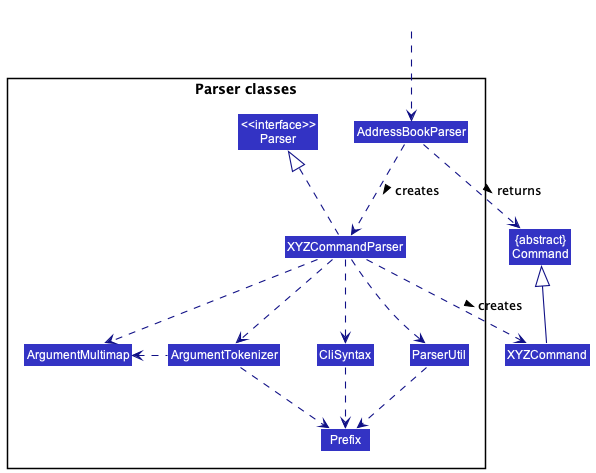

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddPersonCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddPersonCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddPersonCommandParser, DeletePersonCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

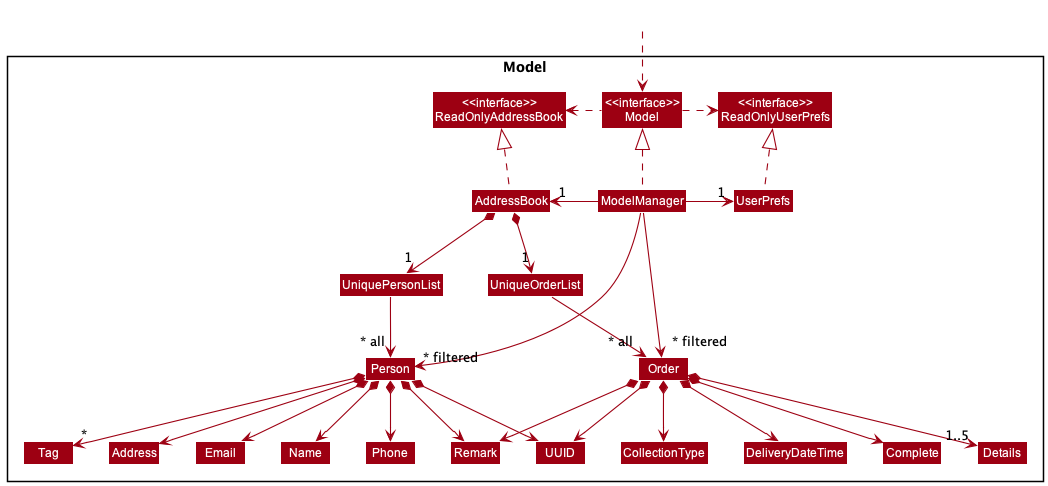

Model component

API : Model.java

The Model component,

• stores the address book data i.e., all Person and Order objects (which are contained in a UniquePersonList object and a UniqueOrderList object).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores the currently ‘selected’ Order objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Order> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

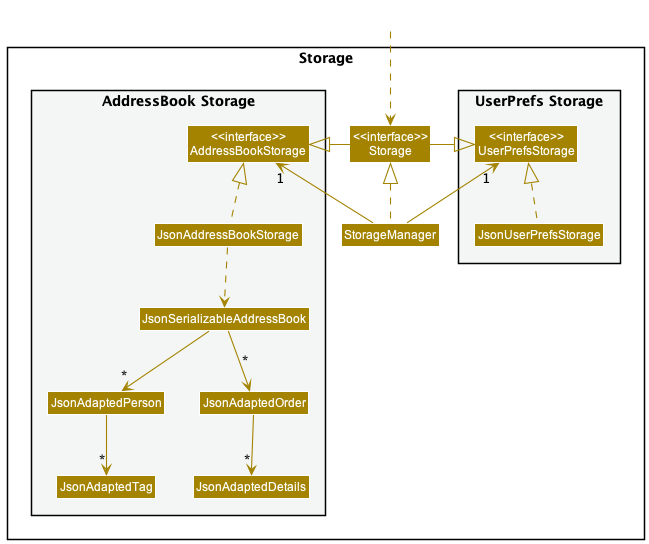

API : Storage.java

The Storage component,

• can save both ReadyBakey data and user preference data in json format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Adding Orders Feature

This feature allows users to add orders.

Implementation

The AddOrder feature uses the command addo. It extends the abstract class Command. The AddOrder feature takes in 4 required parameter and 1 optional parameter.

Prefix	Meaning	Example	Format	Compulsory
p/	Phone Number	p/ 90124322	Must be a number longer than 3 digits	Yes
c/	Delivery Date and Time	c/ 30-06-2022 15:30	Must follow the format dd-MM-yyyy HH:mm	Yes
m/	Collection Type	m/ delivery	Must be either delivery or pickup with any capitalisation	Yes
d/	Details of Order	d/ 1:Chocolate Cake	Can take in any detail of the order	Yes
r/	Remark	r/ Put more Chocolate	Can take in any remark of the order	No

When the add order command is executed by calling AddOrderCommand#execute, the order is built with the respective phone number, delivery date time, collection type, details and remarks specific to that order. This is performed in the function AddOrderCommand#buildOrder.

All inputs by users go through an AddOrderCommandParser which extracts out the relevant details for each prefix in the method AddOrderCommandParser#parse. This method handles the checking of whether the input by the user is valid.

There are 3 main forms of invalid input by the user that is checked for:

1. When any of the compulsory fields are not specified in the creation of an order
2. Any field does not fulfil the provided format
3. The length of a field is not within the allowed range

When an invalid input is parsed, a ParseException is thrown and the user will be shown a message on the proper usage of the add order command.

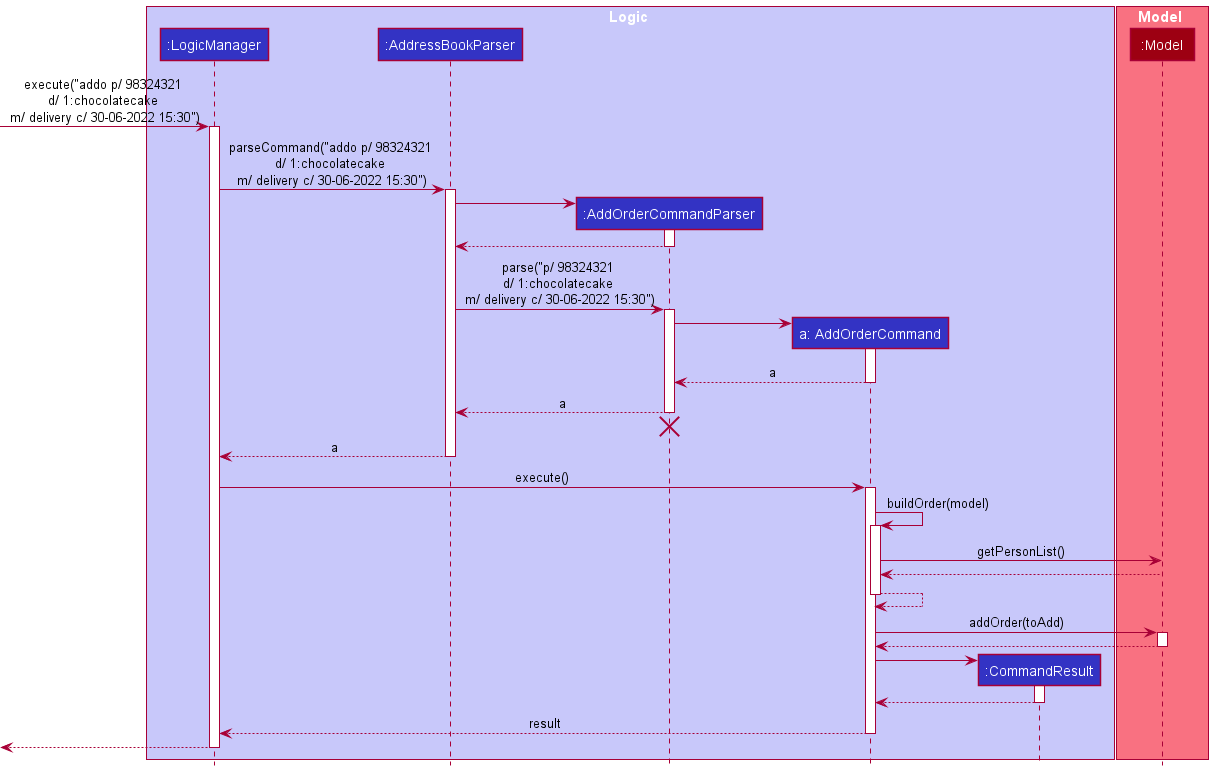

The following sequence diagram illustrates how the AddOrderCommand works:

Design Considerations

1) Phone Number stores any number longer than 3 digits long and less than 15 digits long

• This format was chosen to be more flexible to accept different length of numbers
• Phone number needs to already exist in a Person so that there is a linkage made
  • Phone number was chosen to create a link as we expect our users to copy over the data from another source. E.g. Received orders on Whatsapp -> Input into ReadyBakey. This would make it easier for our users to add data in as compared to having to find the index of the user in the app. 2) Delivery Date and Time takes in user input in the format dd-MM-yyyy HH:mm, as well as natural date formats E.g. Mon 12:59
• This user input format was chosen to be user-friendly
• This Date and Time is represented to the user in the format such as “Thursday, 30 Jun 2022, 03:30PM”
  • This was chosen to be a very readible date and time format 3) Collection Type is an enum with types DELIVERY or PICKUP
• Enum was chosen to keep this representation more flexible and easily readable
• Alternative:
  • Using a Boolean value to represent delivery vs pickup
    • This was not chosen to increase the flexibility and extensibility of the code 4) Remark was left to be of open format to give the user flexibility in describing the orders
• There is a maximum character limit imposed of 70 due to UI considerations 5) Details has to be given in the format NumberOfItems:NameofItem E.g. 1:ChocolateCake
• There is a maximum character limit imposed of 30 for the name of the item due to UI considerations
• The number of items has to be in the range of 1 - 99

Mark/Unmark Orders Feature

This feature allows users to mark the orders as complete/incomplete.

Implementation

The mark feature consists of two commands, MarkOrderCommand and UnmarkOrderCommand. Both of the commands extend Command. An Index parameter is needed to indicate the targeted order.

When the commands are executed by calling Command#execute(Model model), the Order that is indicated by the Index, will have its attribute Complete updated to have an appropriate boolean value. This is done by calling model#setOrder(Order target, Order editedOrder) which replaces the existing order with editedOrder to ensure that Order is immutable.

When an invalid input is parsed, a CommandException will be thrown and the user will be shown a message on the proper usage of the command.

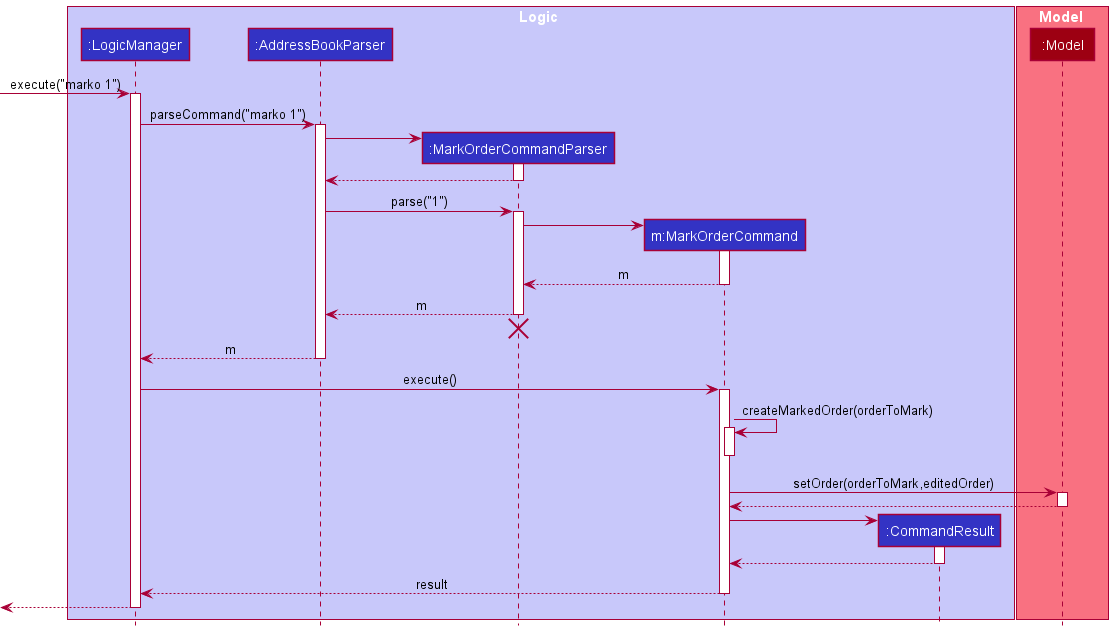

The following sequence diagram illustrates how the MarkCommand works:

Similar concept applies for UnmarkOrderCommand.

Design consideration

1) Complete stores a boolean value.

• Boolean value was chosen to keep the implementation simple.
• Alternative: Store an Enum containing possible values of Complete
  • Pros: More easily readable.
  • Cons: Larger implementation.
• Boolean chosen due to simple implementation.
• Completion status of an order can only take 2 values, an order can be complete or incomplete, thus there is no need for an Enum class.

2) Order is still immutable

• Creating a marked order will duplicate the current order, while changing the Complete attribute
• Then, the current order will be replaced with the new order in order to maintain immutability.

Finding Persons and Orders Through Selected Attribute

Implementation

Users are able to find specific persons/orders based on their respective attributes. For example, users can find orders that are made by a Person with name “Alex”.

The search is based on (case-insensitive) words matching the keyword input. Both findo and findp work similarly, only differing in the attributes supported for find.

Supported attributes for findp: name, phone, email, address, remark. Supported attributes for findo: name, phone, details, collection_type, remark.

Design considerations:

The parsing of searchable attributes and as well as the keywords (to find for) is currently done with ArgumentTokenizer.tokenize() method. This is for congruency with parsing methods in AddOrderCommandParser, EditOrderCommandParser etc.

The method will return a HashMap<String, String>. As HashMap is an unordered structure, filtering on multiple attributes in a single command potentially results in undeterministic results.

• Alternative 1 (current choice): findo and findp will only support filter for one attribute in a single command
  • Filtering for multiple attributes in a single command will result in an error eg findo n/Alex p/98742313.
  • Adding an attribute to search for, that is not supported, will simply be ignored. For example, adding details to search for findo n/Alex d/chococake will only return search results that is the same as findo n/Alex.
• Alternative 2: Implement an alternative form of tokenization to return LinkedHashMap<String, String>, which is based on insertion order of attributes and keywords.
  • Filtering for multiple attributes will be possible. For example
  • However, this will require more man-hours and testing to ensure consistent results, and hence is deprioritised.

For example in findo:

1. Create Predicate for findable attribute.
   • Find (filter) is based on whether the attribute for Order contains the given keyword (case-insensitive)
2. FindOrder<Attribute>Command is then instantiated, which would then find for Order that matches the Predicate.

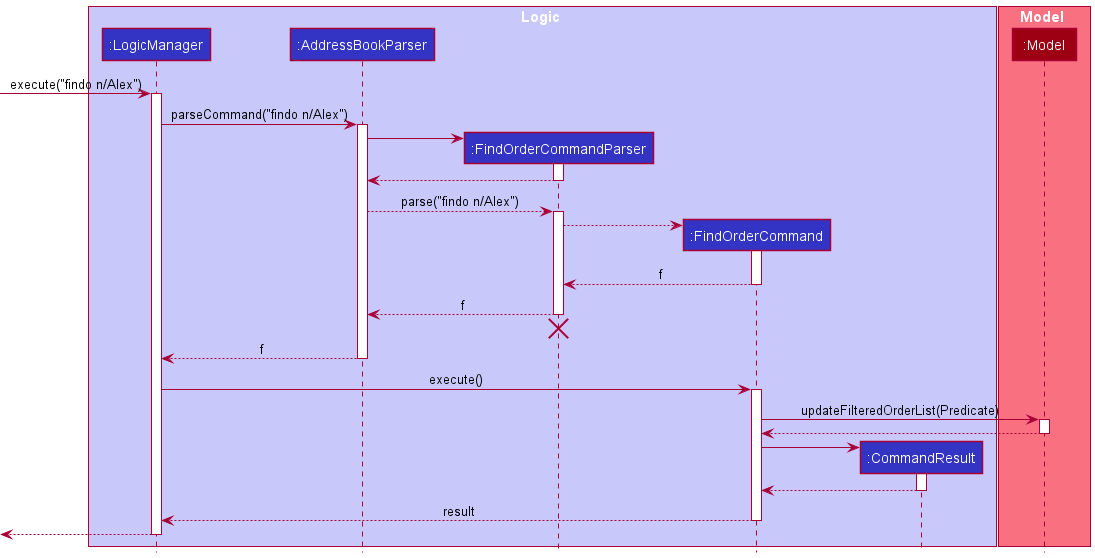

The following sequence diagram shows how the findo operation works:

Edit Order Feature

This feature allows users to edit the details, collection/ delivery time, whether an order is for delivery or pickup, and remarks of the order that already exists in ReadyBakey. Currently, it can only edit the details of the order.

Implementation

The edit orders feature consists of one command, EditOrderCommand. It extends Command.

These are the inputs that the edit order command will accept:

1. It takes in an Index parameter to indicate the order that is to be edited.
2. It also takes in other optional inputs based on the prefixes specified:

Prefix	Meaning	Example	Format	Compulsory
c/	Collection/ delivery time	c/30-06-2022 15:30	Must follow the format dd-MM-yyyy HH:mm	No
m/	Collection type (Pickup or Delivery)	m/delivery	Must be either delivery or pickup with any capitalisation	No
d/	Order Details	d/1x Cheesecake	Must be in the form [NUM_ORDERS]: [ANY_STRING]	No
r/	Order Remarks	r/Give me candles	Can take in any remark for the order	No

At least one of the prefixes needs to be specified to be edited.

When the edit order command is executed by calling the Command#execute(), the Order indicated by the Index, will have its order edited, depending on the prefixes that were specified. A new order with the respective details, collection/ delivery time, whether an order is for delivery or pickup, and remarks of the order, will be created. This is performed by the function EditOrderCommand#createEditedOrder().

All inputs are parsed through an EditOrderCommandParser, which parses each prefix and extracts the relevant information for each prefix. This is done in the method EditOrderCommandParser#parse(). It also checks on the validity of the user input.

There are two parts to the input that will be checked for validity:

1) When an invalid index is provided, a CommandException is thrown and the user will be told that the order index they have provided is invalid. 2) When there are no prefixes provided, a ParseException is thrown and the user is shown a message to provide at least one field to edit. 3) When an invalid input is parsed, a ParseException is thrown and the user is shown a message on the proper usage of the edit order command.

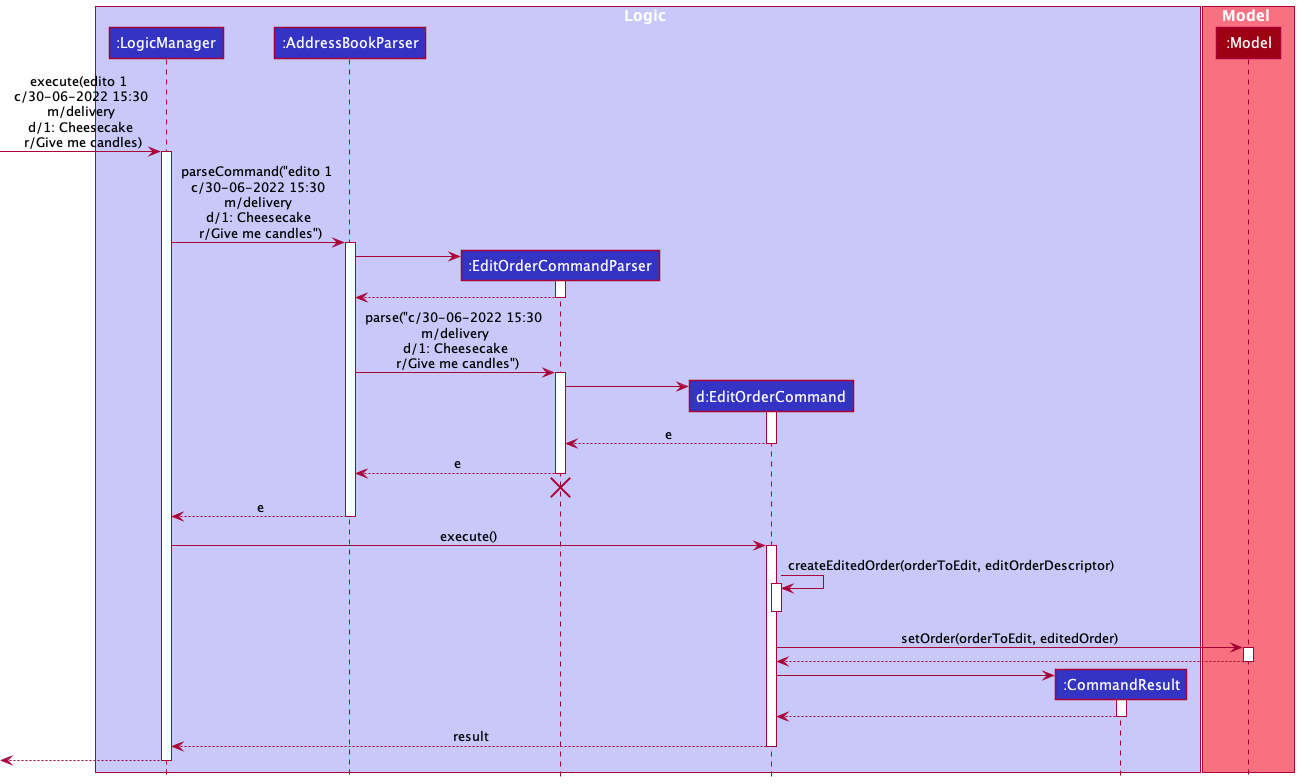

The following sequence diagram illustrates how the EditOrderCommand will work:

Design considerations

1) Delivery date and time being parsed in should allow the usage of natural dates such as Thursday 3pm or Monday 4pm and ReadyBakey will know the date being parsed is the upcoming Thursday at 3pm. This is alongside the parsing of date and time in the format dd-MM-yyyy HH:mm. - This provides bakers with better ability to key in dates without having to stick to only keying in the full date and time format. 2) Editing should not be allowed for the completion of the order. It should be done with the use of mark or unmark orders instead. 3) The Natural Dates is sensitive to the time that is passed to it.

• If the current time is 7th April 2022 09:30, which is a Thursday, inputting Thurs 08:30 will return 14th April 2022 as the closest Thursday.
  • Reason: 08:30 has already passed the current time, hence ReadyBakey will look for a future date that is a Thursday instead.
• If the current time is 7th April 2022 09:30, which is a Thursday, inputting Thurs 10:30 will return 7th April 2022 as the closest Thursday.
  • Reason: 10:30 has not passed the current time, hence ReadyBakey will look at the current day as the closest Thursday. 4) The person’s phone number, address, email, name, and tags cannot be edited through this command.

Listing all orders

This feature allows users to get a list of all the orders that the user has inputted.

Implementation

The list orders feature consists of one command, ListOrderCommand. It extends Command.

When the command is executed by calling the method Command#execute(), all orders will be returned out through the use of a predicate. This would return a FilteredList of all the orders.

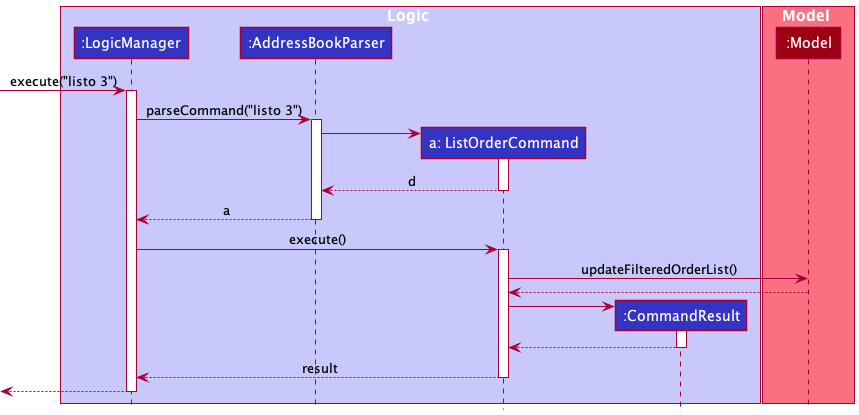

The following sequence diagram illustrates how the listo command will work:

Design considerations

1. listo when used with other inputs after it, will still work as per usual, which is to list the orders.

Find Incomplete Orders Before A Date Feature

This feature allows users to get a list of incomplete orders, sorted by datetime, for quick reference to orders that require attention.

Implementation

The incompleteo command takes in a date as a required parameter.

When the command is executed, all orders that are incomplete and before or during the given datetime will be filtered out through the use of a predicate. This would return out a FilteredList of the desired incomplete orders.

From here, the orders in the FilteredList are wrapped in a SortedList sorted according to their datetimes with the use of a orderDateComparator. This returns a SortedList, which is finally returned back to the LogicManager.

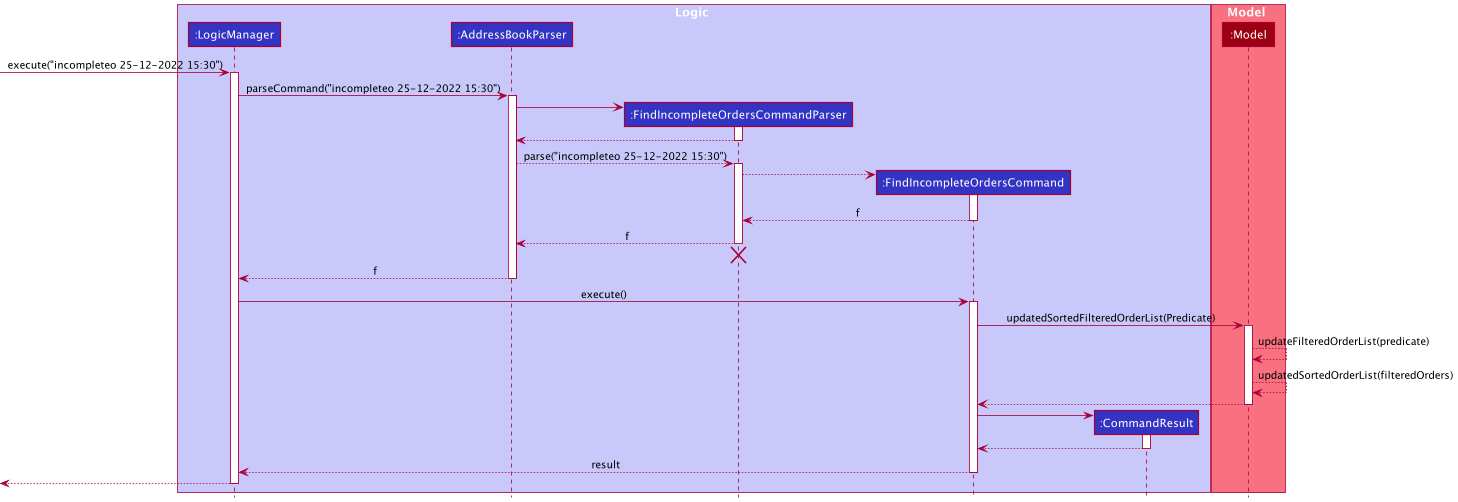

The following sequence diagram illustrates how the incompleteo command will work:

Design considerations

1. The predicate being used to filter the orders contains checks for both incomplete order status and delivery datetime being before or during the given date. Alternatively, these 2 conditions could have been set up as a predicate each, which would potentially allow for easier reuse in future commands that might require just a incomplete order status predicate, or just a date checking predicate. However, it seemed challenging to chain 2 predicates sequentially, and so this idea was abandoned due to time constraints. It was far more efficient to simply create 1 predicate that checked for both conditions.
2. The sorting functionality introduced a SortedList alongside FilteredList as a return type. This meant needing to refer to a common interface, ObservableList, wherever either were expected in the LogicManager.

Delete orders

This feature allows the user to delete orders from the application based on the index on the displayed list in the application.

Implementation

Deleting orders from the application will not affect Persons in the application. This is so an Order is linked to a Person through the same phone number, which allows the Order to retrieve the person’s name, phone number and address.

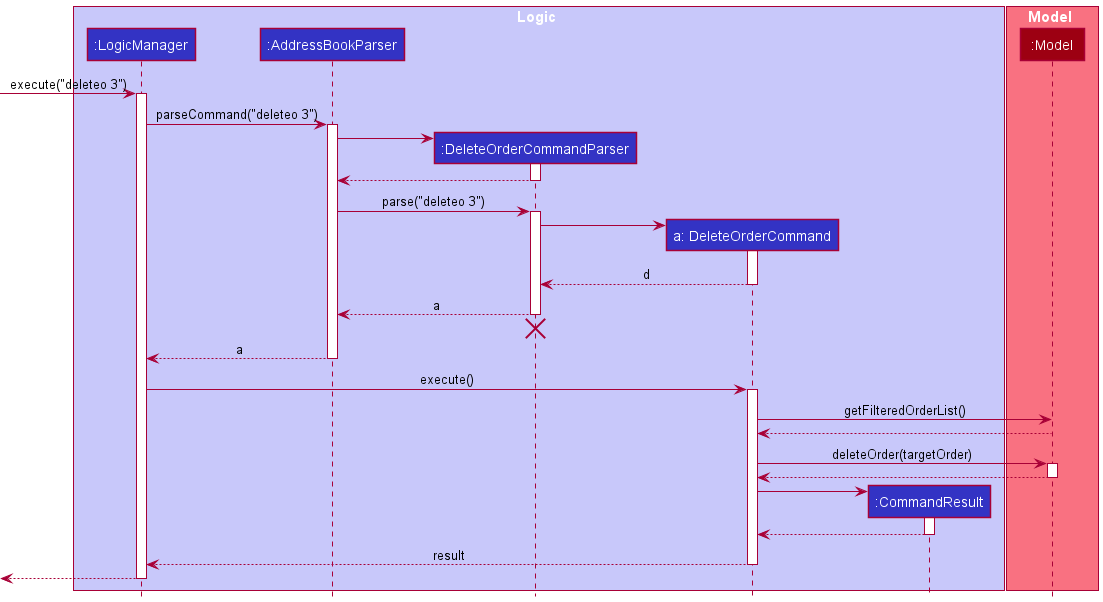

The following sequence diagram shows how the deleteo operation works:

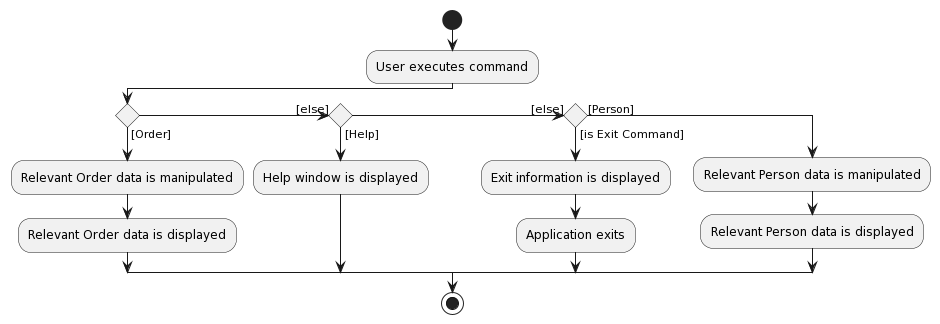

Dynamic Toggling Between Application’s Data

Implementation

Users must be able to view the specific data that they need, without excess data, just by working with the command line. For example, if the user is requesting Order information, they should not be distracted by Person information as well - only Order information can be shown.

The ability to toggle through the application’s data is facilitated by MainWindow and CommandResult.

In MainWindow#executeCommand(String commandText), the type of CommandResult of the executed command is checked and the MainWindow then displays the appropriate information for the user.

Design considerations:

1. CommandResult requires boolean attributes that indicate what kind of command has been executed.
   • isOrderCommand - boolean indicating whether the command is related to orders
   • isPersonCommand - boolean indicating whether the command is related to persons
   • isHelpCommand - boolean indicating whether the command is related to getting help
   • isExitCommand - boolean indicating whether the command is to exit the application

The following activity diagram summarizes what happens when a user executes the different types of commands:

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• tech-savvy small bakery or home bakery owners
• needs to track their customers and orders in a central application
• needs to track details of the cake orders (e.g. Delivery or pickup, cakes ordered)
• prefer CLI desktop apps over other types
• enjoys typing instead of mouse interaction

Value proposition:

Handling multiple orders and inventory leads to a time sink. Having a central system management process allows bakers to focus on what’s important – baking.

• The application organises cake orders for its fulfilment.
• It also acts as a centralised and structured schedule manager, tracking an individuals’ baking inventory needs.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	new user	see usage instructions	refer to instructions when I forget how to use the App
* *	new user unfamiliar with the interface	get a list of commands available	know what commands are available
* * *	user	add a new person
* * *	user	delete a person	remove entries that I no longer need
* * *	user	find a person by name	locate details of persons without having to go through the entire list
* * *	user	exit the application	use my laptop without the program running in the background
* * *	user with multiple orders	add orders with custom details such as order details, delivery date and collection type	keep track of all of my orders
* * *	user	delete orders	remove orders in case a customer cancels their order
* *	user	hide private contact details	minimize chance of someone else seeing them by accident
*	user with many customer in the address book	sort customer by name	locate a person easily
* * *	home baker that has multiple customers	clear all my data	quickly remove demo info or restart my bakery data
* * *	home baker that has multiple customers	edit my customers	edit their details if there are any changes to their address, phone number, email, name
* *	home baker that has multiple orders	edit my orders	edit their details if there are any changes to their order
* * *	home baker that has multiple customers	look at all my customers	access the information for different customers
* * *	home baker that has multiple orders	look at my orders	access the attributes for different orders and see when it is due
* * *	home baker that has multiple orders	mark the orders as complete or incomplete	know which orders I have fulfilled or not
* *	home baker that has multiple orders	get a view of unfinished orders for current day	see urgent orders at a glance

Use cases

(For all use cases below, the System is ReadyBakey and the Actor is the user, unless specified otherwise)

Use case: Add a customer

MSS

1. User requests to list customers
2. ReadyBakey shows a list of customers
3. User requests to add a customer into the list

4. ReadyBakey adds the customer into the list

   Use case ends.

Extensions

• 3a. Invalid parameters are passed into input

  • 3a1. ReadyBakey alerts user about invalid parameters.

  • 3a2. User inputs new data.

  • Steps 3a1-3a2 are repeated until data entered is correct.

  Use case resumes from step 4.

Use case: Delete a customer

MSS

1. User requests to list customers
2. ReadyBakey shows a list of customers
3. User requests to delete a specific customer in the list

4. ReadyBakey deletes the customer

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. ReadyBakey shows an error message.

    Use case resumes at step 2.

Use case: Mark an order as complete

MSS

1. User requests to list orders
2. ReadyBakey shows a list of orders
3. User requests to mark a specific order in the list as complete

4. ReadyBakey marks the order as complete

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. ReadyBakey shows an error message.

    Use case resumes at step 2.

• 3b. The specified order is already marked as complete

  • 3b1. The order remains marked as complete

    Use case resumes at step 2.

Use case: Mark an order as incomplete

MSS

1. User requests to list orders
2. ReadyBakey shows a list of orders
3. User requests to mark a specific order in the list as incomplete

4. ReadyBakey marks the order as incomplete

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. ReadyBakey shows an error message.

    Use case resumes at step 2.

• 3b. The specified order is already marked as incomplete

  • 3b1. The order remains marked as incomplete

    Use case resumes at step 2.

Use case: Clears all data in the application

MSS

1. User requests to clear both order and customer data from the application

2. ReadyBakey clears both order and customer data from the application.

   Use case ends.

Use case: Exits the ReadyBakey program

MSS

1. User requests to exit the program.

2. ReadyBakey says bye and closes the application.

   Use case ends.

Extensions

• 1a. User closes the program without using CLI.
  • 1a1. ReadyBakey closes the application.

Use case: Locate customer by their name

MSS

1. User requests to find the customer by name in ReadyBakey.

2. ReadyBakey finds the customers whose names match the requested customer.

   Use case ends.

Extensions

• 1a. ReadyBakey detects no customers that match the user’s request.
  • 1a1. ReadyBakey returns no results and queries user if the correct customer name has been entered.
  • 1a2. User enters the correct customer name.

  • Steps 1a1-1a2 are repeated until the data entered are correct.

    Use case resumes at step 2.

Use case: Editing customer’s address

MSS

1. User requests to edit specific customer’s address.

2. ReadyBakey edits the specified customer’s address.

   Use case ends.

Extensions

• 1a. ReadyBakey detects no customers that match the user’s request.
  • 1a1. ReadyBakey requests for the correct customer index.
  • 1a2. User enters the correct customer index.

  • Steps 1a1-1a2 are repeated until the data entered are correct.

    Use case resumes at step 2.

Use case: Editing customer’s email address

MSS

1. User requests to edit specific customer’s email address.
2. ReadyBakey edits the specified customer’s email address.

Use case ends.

Extensions

• 1a. ReadyBakey detects no customers that match the user’s request.
  • 1a1. ReadyBakey requests for the correct customer index.
  • 1a2. User enters the correct customer index.

  • Steps 1a1-1a2 are repeated until the data entered are correct.

    Use case resumes at step 2.

Use case: Editing customer’s name

MSS

1. User requests to edit specific customer’s name.
2. ReadyBakey edits the specified customer’s name.

Use case ends.

Extensions

• 1a. ReadyBakey detects no customers that match the user’s request.
  • 1a1. ReadyBakey requests for the correct customer index.
  • 1a2. User enters the correct customer index.

  • Steps 1a1-1a2 are repeated until the data entered are correct.

    Use case resumes at step 2.

Use case: Editing customer’s phone number

MSS

1. User requests to edit specific customer’s phone number.
2. ReadyBakey edits the specified customer’s phone number.

Use case ends.

Extensions

• 1a. ReadyBakey detects no customers that match the user’s request.
  • 1a1. ReadyBakey requests for the correct customer index.
  • 1a2. User enters the correct customer index.

  • Steps 1a1-1a2 are repeated until the data entered are correct.

    Use case resumes at step 2.

Use case: List all Customers

MSS

1. User requests to list all customers

2. ReadyBakey shows a list of customers

   Use case ends

Use case: List all Orders

MSS

1. User requests to list all orders

2. ReadyBakey shows a list of orders

   Use case ends

Use case: Add an Order

MSS

1. User requests to list orders
2. ReadyBakey shows a list of orders
3. User requests to add a new order in the list

4. ReadyBakey adds the order

   Use case ends.

Extensions

• 3a. Invalid parameters are passed into input

  • 3a1. ReadyBakey alerts user about invalid parameters.

  • 3a2. User inputs new data.

  • Steps 3a1-3a2 are repeated until data entered is correct.

  Use case resumes from step 4.

Use case: Edit an Order

MSS

1. User requests to list orders
2. ReadyBakey shows a list of orders
3. User requests to edit a specific order in the list

4. ReadyBakey edits the order

   Use case ends.

Extensions

• 3a. Invalid parameters are passed into input

  • 3a1. ReadyBakey alerts user about invalid parameters.

  • 3a2. User inputs new data.

  • Steps 3a1-3a2 are repeated until data entered is correct.

  Use case resumes from step 4.

Use case: Delete an Order

MSS

1. User requests to list orders
2. ReadyBakey shows a list of orders
3. User requests to delete a specific order in the list

4. ReadyBakey deletes the order

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. ReadyBakey shows an error message.

    Use case resumes at step 2.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 500 customers without a noticeable sluggishness in performance for typical usage.
3. Should be able to hold up to 500 orders without a noticeable sluggishness in performance for typical usage.
4. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
5. The system should be usable by a novice who has never used an order management system before.
6. The system should respond within five seconds.
7. The product is not required to handle the contacting of customers.
8. The product is not required to handle the optimisation of orders fulfilment

Glossary

• Mainstream OS: Windows, Linux, Unix, OS-X
• Private contact detail: A contact detail that is not meant to be shared with others

---
